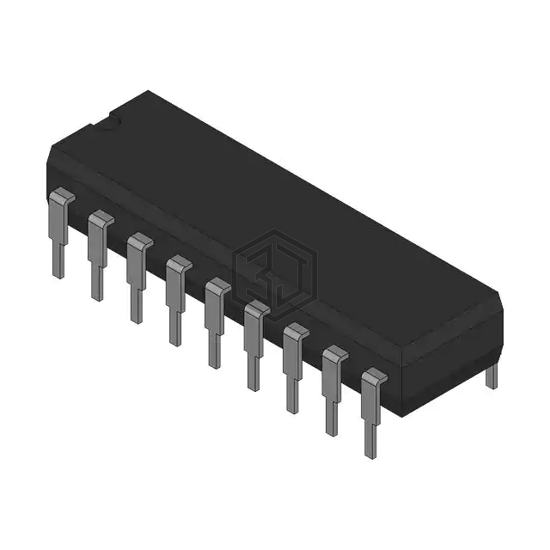

ANALOG LATCHABLE MUX, 4-CHANNEL
DG529AK is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Harris Corporation. ANALOG LATCHABLE MUX, 4-CHANNEL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case 18-CDIP (0.300", 7.62mm), number of circuits 2.
In Stock: 2,859
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 24Ohm |
| Voltage - Supply, Single (V+) | 44V |
| Voltage - Supply, Dual (V±) | 44V |
| Switch Time (Ton, Toff) (Max) | 1µs (Typ), 400ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 18-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 18-CERDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG509AAK/883B | Analog Devices Inc./Maxim Integrated | IC MUX 8:2 400 OHM 16DIP | 89% | View |
| DG527AK | Harris Corporation | ANALOG LATCHABLE MUX, 8-CHANNEL | 86% | View |
| IH5208MJE | Harris Corporation | FAULT PROTECTED ANALOG MUX | 83% | View |
| DG200AAK/883B | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST DUAL 16CDIP | 80% | View |
| IH5052MDE | Harris Corporation | QUAD CMOS ANALOG SWITCH | 78% | View |
| IH5053MDE | Harris Corporation | QUAD CMOS ANALOG SWITCH | 78% | View |
Submit your RFQ for DG529AK and get a quote within 24 hours.
