SPDT DRIVER WITH JFET SWITCH

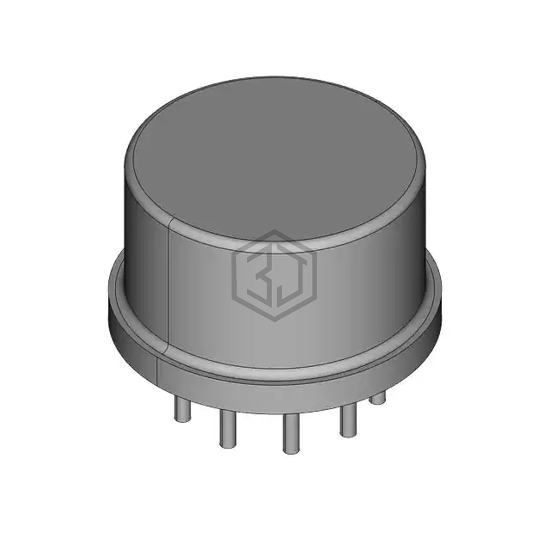

DG186AA is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Harris Corporation. SPDT DRIVER WITH JFET SWITCH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case TO-100-10 Metal Can, number of circuits 1.
In Stock: 219
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | ±15V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 300ns, 250ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 6pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-100-10 Metal Can |
| Supplier Device Package | TO-100-10 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG186AP/883B | Harris Corporation | SPDT DRIVER WITH JFET SWITCH | 100% | View |
| ADG506ATQ/883B | Analog Devices Inc. | IC MULTIPLEXER 16CH 28CDIP | 91% | View |
| 5962-89710013X | Analog Devices Inc. | IC MULTIPLEXER 16X1 28CLCC | 91% | View |
| ADG526ATQ | Analog Devices Inc. | IC MULTIPLEXER 16X1 28CDIP | 91% | View |
| HI1-0381-2 | Harris Corporation | DUAL SPST MOS ANALOG SWITCH | 88% | View |
| HI1-0390/883 | Harris Corporation | DUAL SPDT CMOS ANALOG SWITCH | 80% | View |
Submit your RFQ for DG186AA and get a quote within 24 hours.
