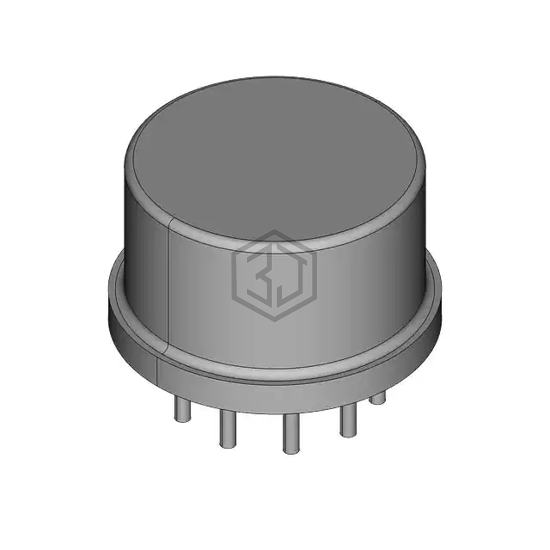

DUAL SPST HIGH-SPEED DRIVER
DG180AA is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Harris Corporation. DUAL SPST HIGH-SPEED DRIVER. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case TO-100-10 Metal Can, number of circuits 2.
In Stock: 354
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 400ns, 200ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 21pF, 17pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | - |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | TO-100-10 Metal Can |
| Supplier Device Package | TO-100-10 |
DG180AA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG180AP | Vishay Siliconix | IC SWITCH DUAL SPST 14-DIP | 100% | View |
| JM38510/11104BEA | Harris Corporation | DUAL DPST HIGH-SPEED DRIVER | 75% | View |
| 5962-8767301IA | Harris Corporation | DUAL SPST SWITCH | 73% | View |
| IH5051MJE | Analog Devices Inc./Maxim Integrated | DUAL SPST, LOW CHARGE INJECTION | 67% | View |
| IH5051MJE/883B | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT DUAL 16CDIP | 67% | View |
| HI1-0387/883 | Harris Corporation | SPDT CMOS ANALOG SWITCH | 55% | View |
