REGULATING PULSE WIDTH MODULATOR

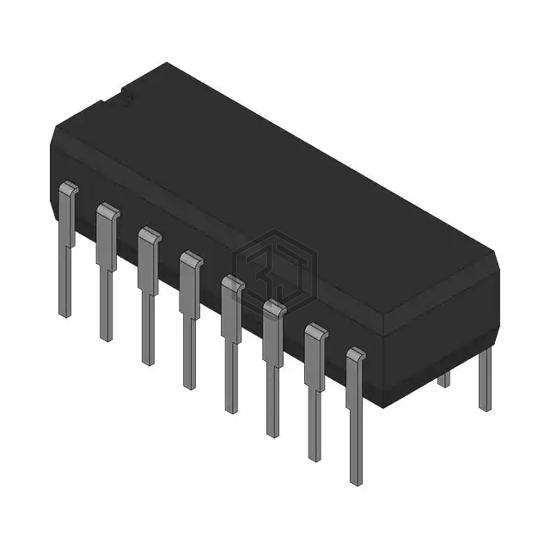

CA2524E is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Harris Corporation. REGULATING PULSE WIDTH MODULATOR. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 8V ~ 40V, package / case 16-DIP (0.300", 7.62mm).
In Stock: 5,091
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Flyback, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 40V |
| Frequency - Switching | 300kHz |
| Duty Cycle (Max) | 45% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Dead Time Control, Frequency Control |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
