N-CHANNEL POWER MOSFET

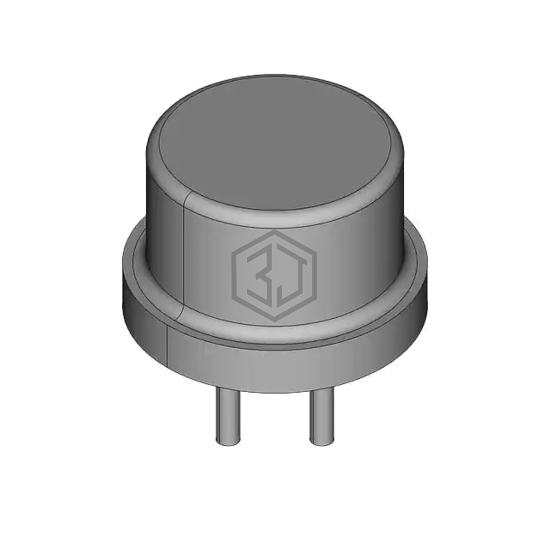

2N6792 is a Transistors - FETs, MOSFETs - Single manufactured by Harris Corporation. N-CHANNEL POWER MOSFET. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-205AF Metal Can.
In Stock: 10,903
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 400 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.8Ohm @ 1.25A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 600 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 20W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-205AF (TO-39) |
| Package / Case | TO-205AF Metal Can |
Submit your RFQ for 2N6792 and get a quote within 24 hours.
