FIXED IND 800UH 1.75A 640MOHM TH

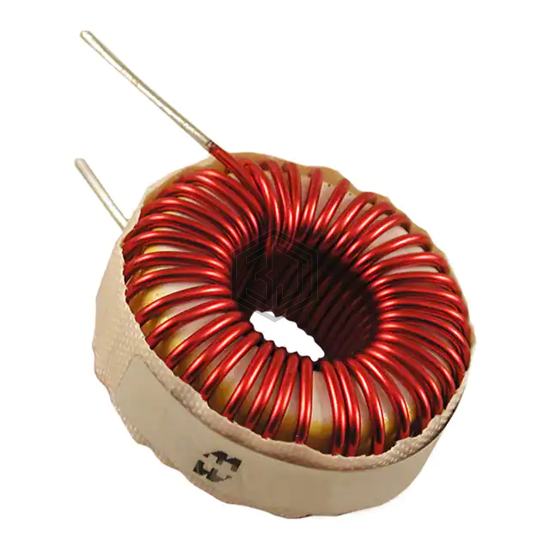

1540M09 is a Fixed Inductors manufactured by Hammond Manufacturing. FIXED IND 800UH 1.75A 640MOHM TH. Key specifications: mounting type Through Hole, package / case Radial, Vertical (Open), current rating (amps) 1.75 A, size / dimension 1.125" Dia x 0.562" W (28.58mm x 14.27mm).
In Stock: 88
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 800 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 1.75 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 640mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.125" Dia x 0.562" W (28.58mm x 14.27mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 1540M09 and get a quote within 24 hours.
