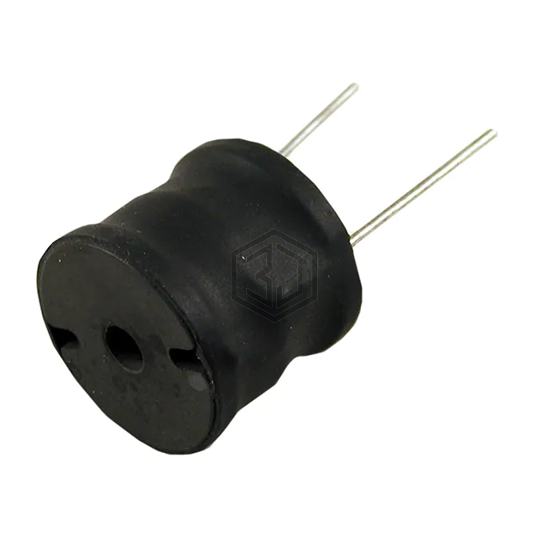

FIXED IND 100UH 9.8A 25 MOHM TH
1539M20 is a Fixed Inductors manufactured by Hammond Manufacturing. FIXED IND 100UH 9.8A 25 MOHM TH. Key specifications: mounting type Through Hole, package / case Radial, Vertical Cylinder, current rating (amps) 9.8 A, size / dimension 1.500" Dia (38.10mm).
In Stock: 32
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 9.8 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 25mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 1.500" Dia (38.10mm) |
| Height - Seated (Max) | 1.110" (28.19mm) |
Submit your RFQ for 1539M20 and get a quote within 24 hours.
