FIXED IND 10UH 20A 6 MOHM TH

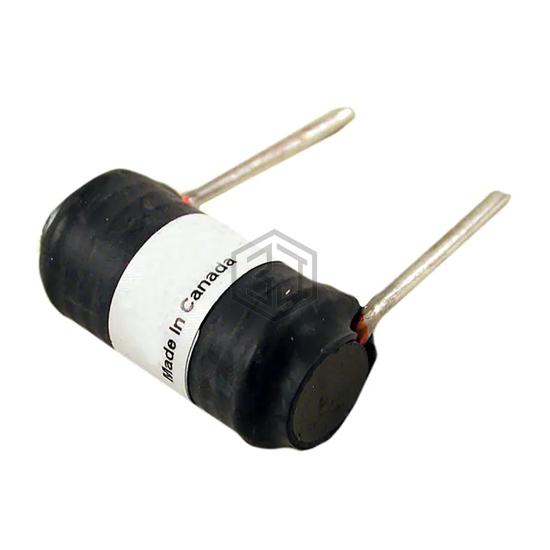

1538M22 is a Fixed Inductors manufactured by Hammond Manufacturing. FIXED IND 10UH 20A 6 MOHM TH. Key specifications: mounting type Through Hole, package / case Radial, Horizontal Cylinder, current rating (amps) 20 A, size / dimension 0.720" Dia x 1.690" L (18.29mm x 42.93mm).
In Stock: 112
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 20 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.720" Dia x 1.690" L (18.29mm x 42.93mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 1538M22 and get a quote within 24 hours.
