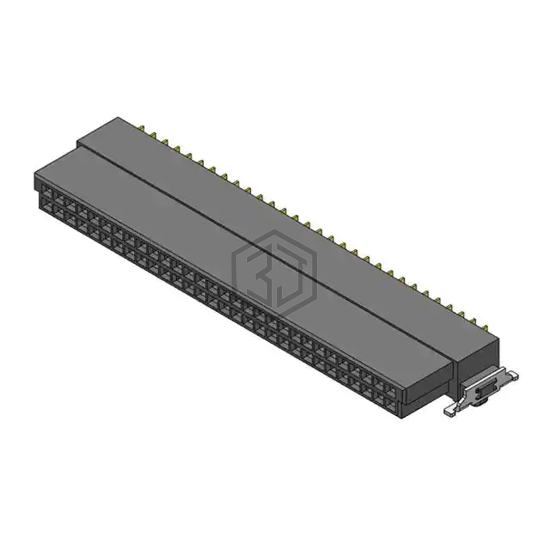

PITCH 1.27MM FEMALE CONNETOR SMC
CBED202-3079B001C1AD is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Greenconn. PITCH 1.27MM FEMALE CONNETOR SMC. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 125°C, current rating (amps) 1.7A per Contact, termination Solder.
In Stock: 6,592
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 60 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | Black |
| Insulation Height | 0.152" (3.85mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide, Solder Retention |
| Current Rating (Amps) | 1.7A per Contact |
| Voltage Rating | - |
Submit your RFQ for CBED202-3079B001C1AD and get a quote within 24 hours.
