SWITCH ROTARY 10POS 50MA 115V

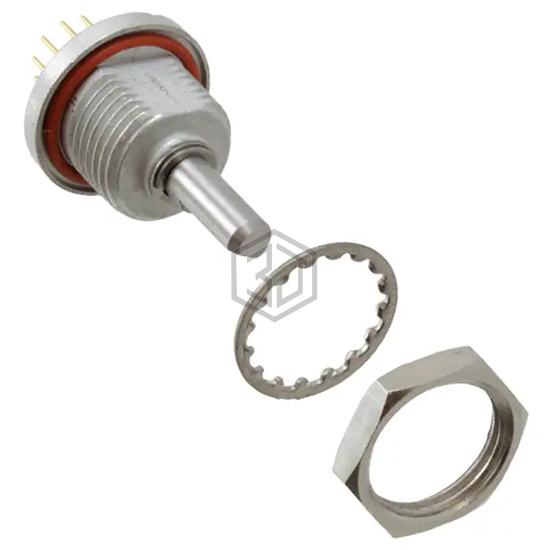

77SPT36-01-1-10N is a Rotary Switches manufactured by Grayhill Inc.. SWITCH ROTARY 10POS 50MA 115V. Key specifications: mounting type Panel Mount, Through Hole, voltage rating - dc 28 V, contact material Silver Cadmium Oxide (AgCdO), current rating (amps) 50mA (AC), 200mA (DC).
In Stock: 648
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Positions | 10 |
| Index Stops | Continuous |
| Number of Decks | 1 |
| Number of Poles per Deck | 1 |
| Circuit per Deck | SP10T |
| Contact Timing | Non-Shorting (BBM) |
| Current Rating (Amps) | 50mA (AC), 200mA (DC) |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 28 V |
| Actuator Type | Flatted (3.17mm Dia) |
| Actuator Length | 7.98mm |
| Angle of Throw | 36° |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Finish | Gold |
| Mounting Type | Panel Mount, Through Hole |
| Termination Style | PC Pin |
| Features | Shaft and Panel Sealed |
| Depth Behind Panel | 4.57mm |
Submit your RFQ for 77SPT36-01-1-10N and get a quote within 24 hours.
