SWITCH ROTARY 2-12POS 250MA 115V

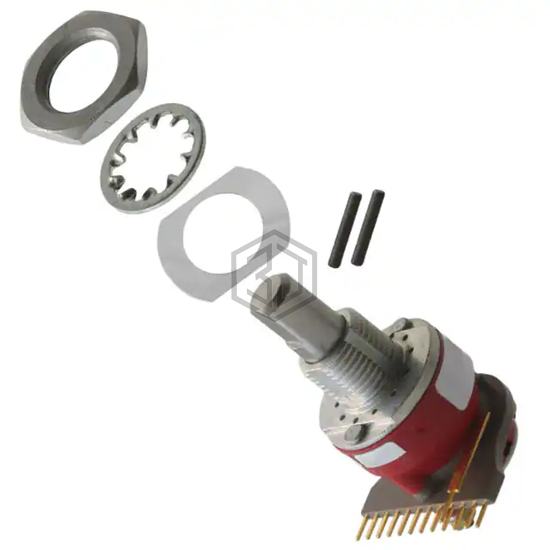

71BDF30-01-1-AJN is a Rotary Switches manufactured by Grayhill Inc.. SWITCH ROTARY 2-12POS 250MA 115V. Key specifications: mounting type Panel Mount, Through Hole, Right Angle, voltage rating - dc 30 V, contact material Silver Alloy, current rating (amps) 250mA (AC/DC).
In Stock: 495
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Positions | 2 ~ 12 |
| Index Stops | Adjustable |
| Number of Decks | 1 |
| Number of Poles per Deck | 1 |
| Circuit per Deck | SP12T |
| Contact Timing | Non-Shorting (BBM) |
| Current Rating (Amps) | 250mA (AC/DC) |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 30 V |
| Actuator Type | Flatted (6.35mm Dia) |
| Actuator Length | 9.53mm |
| Angle of Throw | 30° |
| Contact Material | Silver Alloy |
| Contact Finish | - |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Termination Style | PC Pin |
| Features | - |
| Depth Behind Panel | 19.33mm |
