N-CH, 60V,170A, RD(MAX)<3.5M@10V

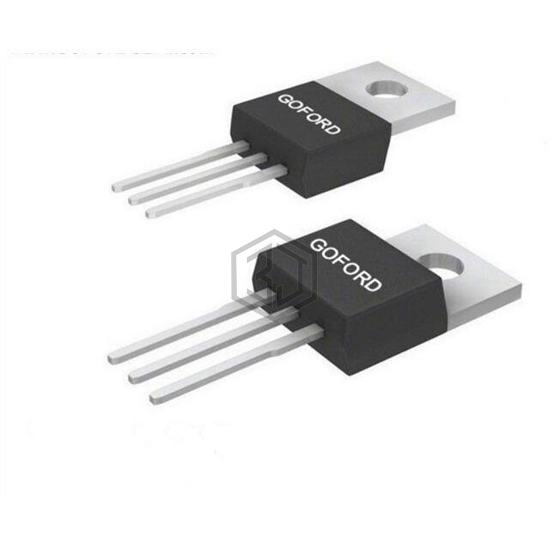

GT035N06T is a Transistors - FETs, MOSFETs - Single manufactured by Goford Semiconductor. N-CH, 60V,170A, RD(MAX)<3.5M@10V. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 170A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.5mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 70 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5064 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 215W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220 |
| Package / Case | TO-220-3 |
