N100V,RD(MAX)<25M@10V,RD(MAX)<30

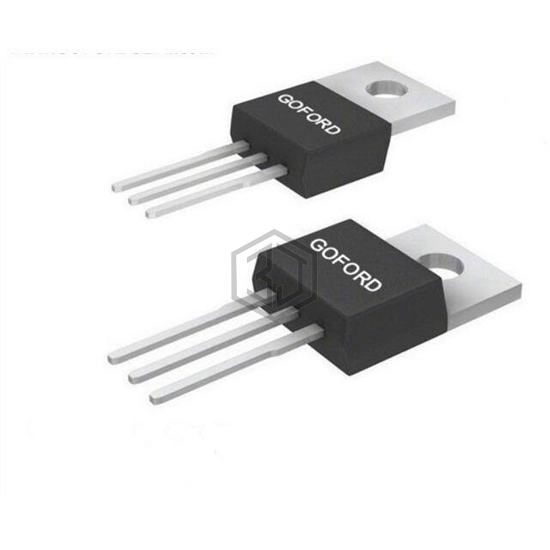

G60N10T is a Transistors - FETs, MOSFETs - Single manufactured by Goford Semiconductor. N100V,RD(MAX)<25M@10V,RD(MAX)<30. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3.
In Stock: 215
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 146 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3970 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 160W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220 |
| Package / Case | TO-220-3 |
Submit your RFQ for G60N10T and get a quote within 24 hours.
