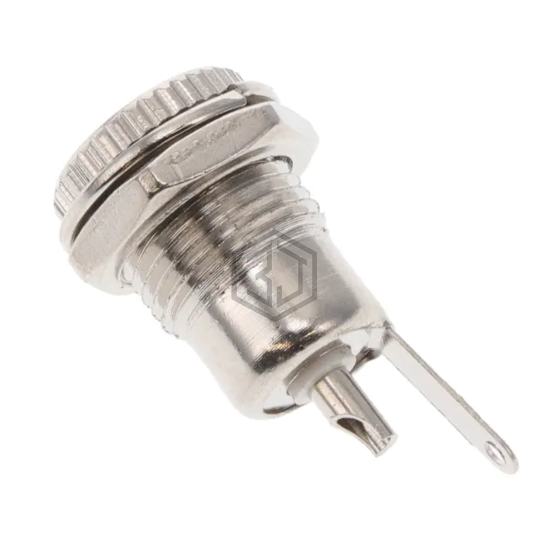

CONN PWR JACK 2.50MMX5.50MM SLDR
JACK-L-PANEL-8A(R) is a Barrel - Power Connectors manufactured by GlobTek, Inc.. CONN PWR JACK 2.50MMX5.50MM SLDR. Key specifications: mounting type Panel Mount, voltage - rated 50VDC, current rating (amps) 8 A, termination Solder Cup, Solder Eyelet.
In Stock: 861
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Actual Diameter | 0.098" (2.50mm ID), 0.224" (5.70mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Termination | Solder Cup, Solder Eyelet |
| Shielding | - |
| Features | Mounting Hardware |
| Insulation Color | - |
| Voltage - Rated | 50VDC |
| Current Rating (Amps) | 8 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for JACK-L-PANEL-8A(R) and get a quote within 24 hours.
