AC/DC CONVERTER 56V 70W

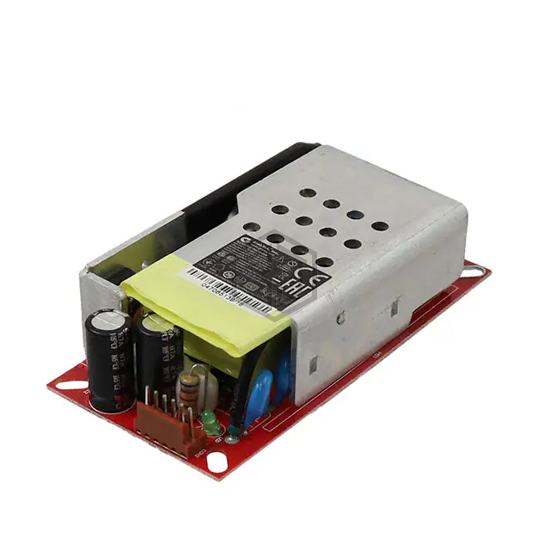

GTM96700-B7056-F(R) is a AC DC Converters manufactured by GlobTek, Inc.. AC/DC CONVERTER 56V 70W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 50°C, voltage - input 90 ~ 264 VAC, size / dimension 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.5mm).
In Stock: 35
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 56V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 1.25 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 70W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 89% |
| Operating Temperature | -10°C ~ 50°C |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.5mm) |
| Approval Agency | CB, CE, EAC, ETL, S-Mark, UkrSEPRO, VCCI |
| Standard Number | 60601-1-11; 60601-1-2; 60950-1; 62368-1 |
Submit your RFQ for GTM96700-B7056-F(R) and get a quote within 24 hours.
