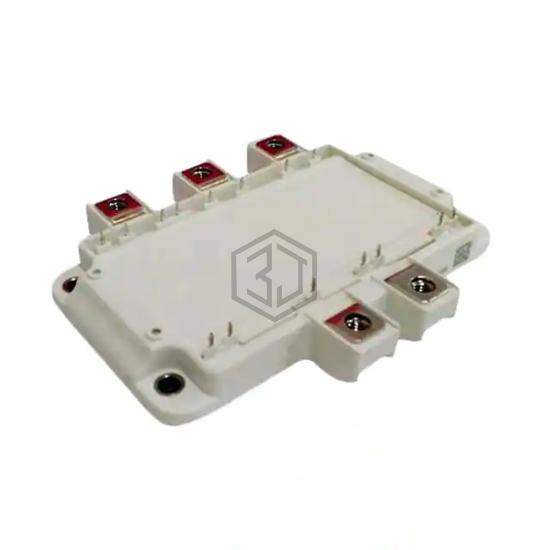

IGBT MOD 1250V 600A 2500W
GSID300A125S5C1 is a Transistors - IGBTs - Modules manufactured by SemiQ. IGBT MOD 1250V 600A 2500W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 600 A.
In Stock: 2,353
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Trench Field Stop |
| Configuration | 3 Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1250 V |
| Current - Collector (Ic) (Max) | 600 A |
| Power - Max | 2500 W |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 30.8 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
Submit your RFQ for GSID300A125S5C1 and get a quote within 24 hours.
