SIC MOSFET N-CH 9A TO263-7

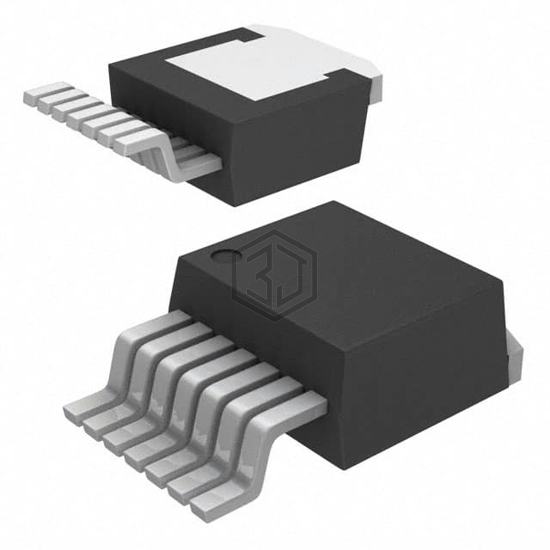

G3R450MT17J is a Transistors - FETs, MOSFETs - Single manufactured by GeneSiC Semiconductor. SIC MOSFET N-CH 9A TO263-7. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.
In Stock: 7,574
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1700 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 585mOhm @ 4A, 15V |
| Vgs(th) (Max) @ Id | 2.7V @ 2mA |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 15 V |
| Vgs (Max) | ±15V |
| Input Capacitance (Ciss) (Max) @ Vds | 454 pF @ 1000 V |
| FET Feature | - |
| Power Dissipation (Max) | 91W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263-7 |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
Submit your RFQ for G3R450MT17J and get a quote within 24 hours.
