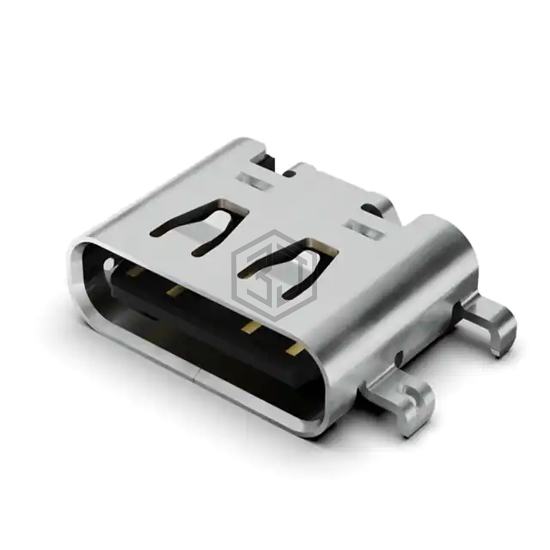

USB C REC 16P 3U" MID MNT 0.8MM
USB4500-03-1-A is a USB, DVI, HDMI Connectors manufactured by GCT. USB C REC 16P 3U" MID MNT 0.8MM. Key specifications: mounting type Board Edge, Cutout; Surface Mount; Through Hole, Right Angle, operating temperature -25°C ~ 85°C, voltage - rated 20VDC, current rating (amps) 0.25A, 1.25A, 5A, 6.25A.
In Stock: 1,060
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | USB-C (USB TYPE-C) |
| Number of Contacts | 24 (16+8 Dummy) |
| Gender | Receptacle |
| Specifications | USB 2.0 |
| Mounting Type | Board Edge, Cutout; Surface Mount; Through Hole, Right Angle |
| Mounting Feature | Horizontal, Mid Mount |
| Termination | Solder |
| Features | Solder Retention Tab |
| Ingress Protection | - |
| Operating Temperature | -25°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 0.25A, 1.25A, 5A, 6.25A |
| Voltage - Rated | 20VDC |
| Mating Cycles | 10000 |
| Shielding | Shielded |
Submit your RFQ for USB4500-03-1-A and get a quote within 24 hours.
