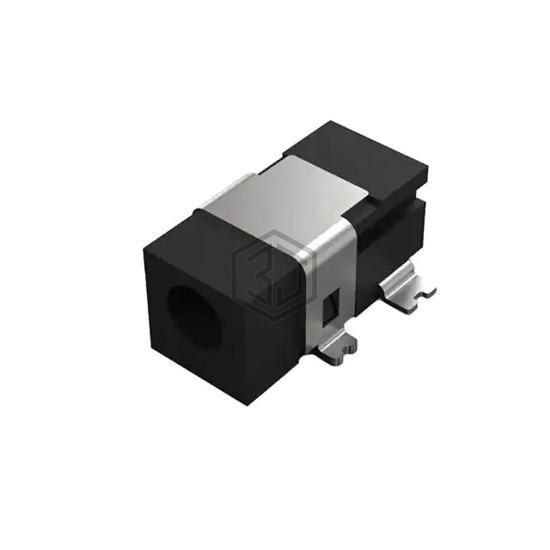

DC POWER JACK, SMT, HORIZONTAL,
DCJ065-05-A-K1-A is a Barrel - Power Connectors manufactured by GCT. DC POWER JACK, SMT, HORIZONTAL,. Key specifications: mounting type Surface Mount, Right Angle, voltage - rated 16VDC, current rating (amps) 2.5 A, termination Solder.
In Stock: 709
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 0.70mm ID (0.028"), 2.35mm OD (0.093") |
| Actual Diameter | 0.026" (0.65mm ID), 0.110" (2.80mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Unshielded |
| Features | Board Guide, Solder Retention |
| Insulation Color | - |
| Voltage - Rated | 16VDC |
| Current Rating (Amps) | 2.5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for DCJ065-05-A-K1-A and get a quote within 24 hours.
