3W, 2.54MM PITCH PIN HDR, SIL, S

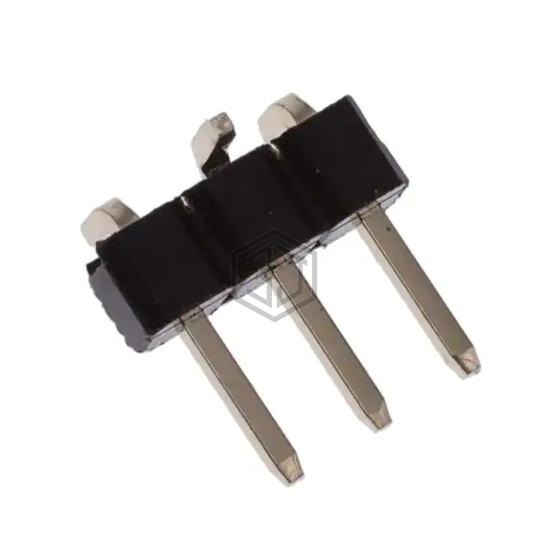

BG055-03A-1-0450-0530-0350-L-G is a Rectangular Connectors - Headers, Male Pins manufactured by GCT. 3W, 2.54MM PITCH PIN HDR, SIL, S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, contact material Copper Alloy, current rating (amps) 3A per Contact.
In Stock: 2,790
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.177" (4.50mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.100" (2.54mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Pick and Place |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A per Contact |
| Voltage Rating | - |
Submit your RFQ for BG055-03A-1-0450-0530-0350-L-G and get a quote within 24 hours.
