20POS, 2MM PITCH PIN HDR, DIL, T

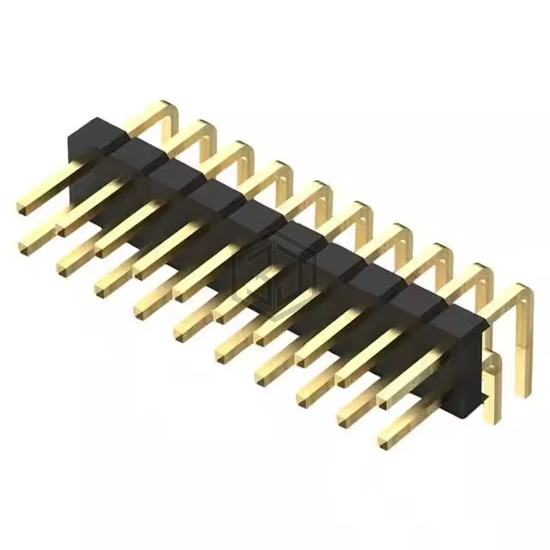

BF060-20A-B-0200-0280-0305-L-D is a Rectangular Connectors - Headers, Male Pins manufactured by GCT. 20POS, 2MM PITCH PIN HDR, DIL, T. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 105°C, voltage rating 250VAC/DC, contact material Copper Alloy.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.079" (2.00mm) |
| Contact Length - Post | 0.110" (2.80mm) |
| Overall Contact Length | - |
| Insulation Height | 0.157" (4.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A per Contact |
| Voltage Rating | 250VAC/DC |
Submit your RFQ for BF060-20A-B-0200-0280-0305-L-D and get a quote within 24 hours.
