2W, 2MM PITCH PIN HDR, SIL, TH,

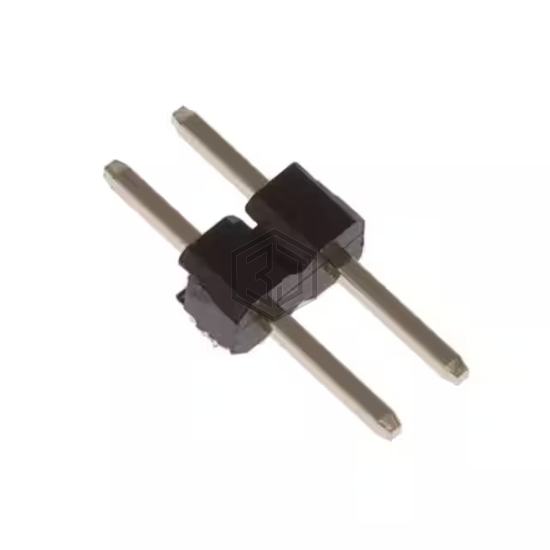

BF020-02-A-B-0400-0300-N-G is a Rectangular Connectors - Headers, Male Pins manufactured by GCT. 2W, 2MM PITCH PIN HDR, SIL, TH,. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, contact material Copper Alloy, current rating (amps) 2A per Contact.
In Stock: 36
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | 0.354" (9.00mm) |
| Insulation Height | 0.079" (2.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A per Contact |
| Voltage Rating | - |
Submit your RFQ for BF020-02-A-B-0400-0300-N-G and get a quote within 24 hours.
