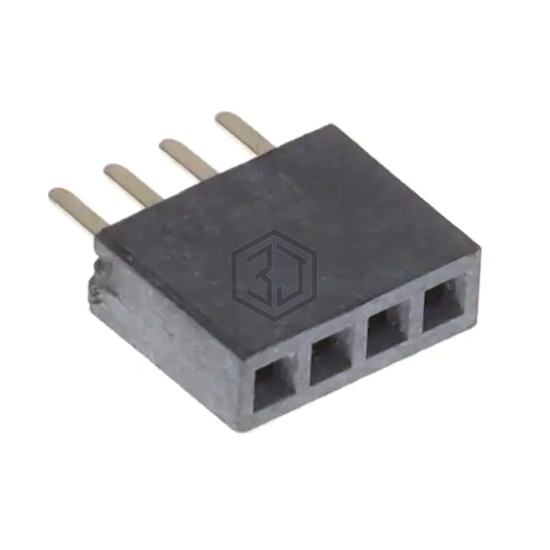

4W, 1.27MM PITCH SOCKET, SIL, TH
BD080-04-A-0230-L-D is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by GCT. 4W, 1.27MM PITCH SOCKET, SIL, TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, current rating (amps) 1A per Contact, termination Solder.
In Stock: 1,345
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | Black |
| Insulation Height | 0.169" (4.30mm) |
| Contact Length - Post | 0.091" (2.30mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 1A per Contact |
| Voltage Rating | - |
Submit your RFQ for BD080-04-A-0230-L-D and get a quote within 24 hours.
