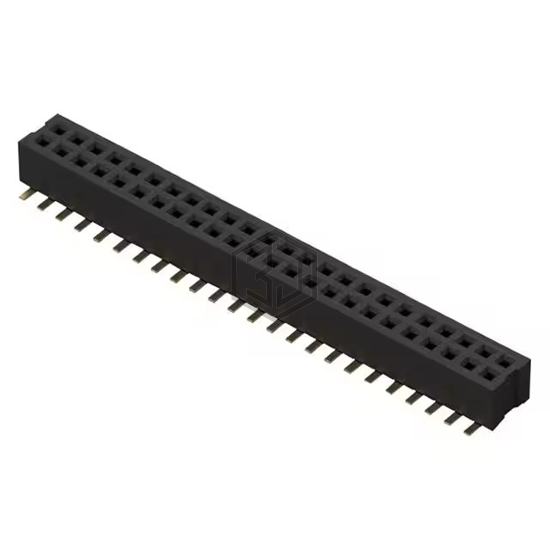

48W, 1.0MM PITCH SOCKET, DIL, SM
BC085-48-A-0390-L-D is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by GCT. 48W, 1.0MM PITCH SOCKET, DIL, SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage rating 250VAC/DC, current rating (amps) 1A per Contact.
In Stock: 8,387
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Bottom or Top Entry |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 48 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.039" (1.00mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | Black |
| Insulation Height | 0.089" (2.26mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Pick and Place |
| Current Rating (Amps) | 1A per Contact |
| Voltage Rating | 250VAC/DC |
Submit your RFQ for BC085-48-A-0390-L-D and get a quote within 24 hours.
