8W, 1.00MM PITCH PIN HDR, SIL, S

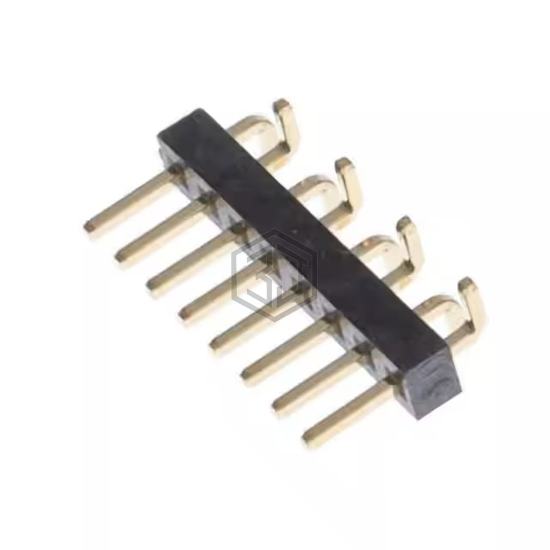

BC032-08-A-2-0200-0200-L-D is a Rectangular Connectors - Headers, Male Pins manufactured by GCT. 8W, 1.00MM PITCH PIN HDR, SIL, S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, contact material Phosphor Bronze, current rating (amps) 1A.
In Stock: 2,980
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.079" (2.00mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.039" (1.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Pick and Place |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
Submit your RFQ for BC032-08-A-2-0200-0200-L-D and get a quote within 24 hours.
