DC-DC POL

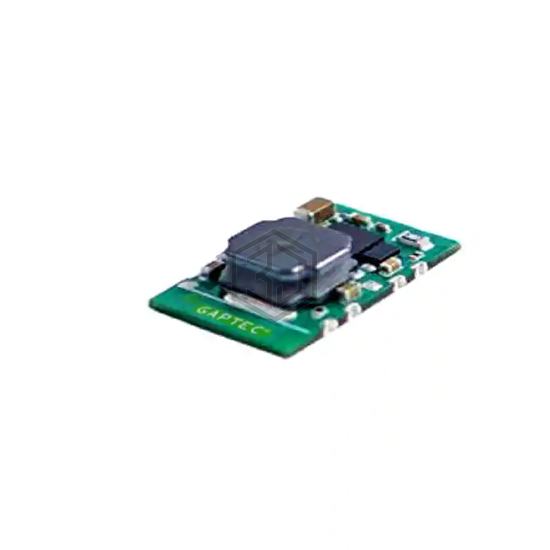

LMTOW78_15-0.5 is a DC DC Converters manufactured by GAPTEC Electronic. DC-DC POL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (With Derating), package / case 10-SMD Module, 6 Leads, current - output (max) 400mA.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 21V |
| Voltage - Input (Max) | 72V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 400mA |
| Power (Watts) | 6 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 84% |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module, 6 Leads |
| Size / Dimension | 0.77" L x 0.46" W x 0.20" H (19.5mm x 11.8mm x 5.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for LMTOW78_15-0.5 and get a quote within 24 hours.
