DC-DC POL

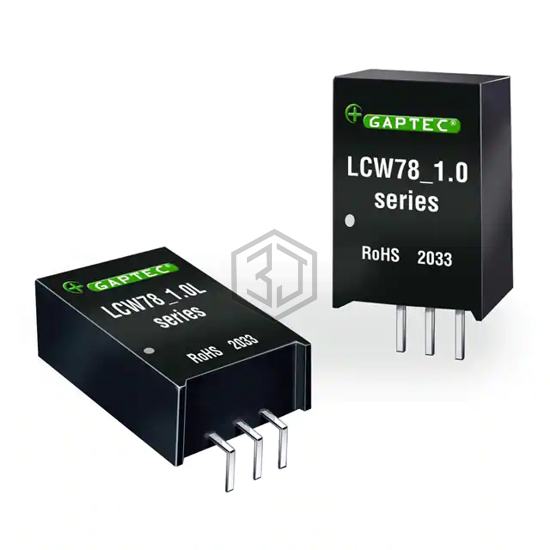

LCW78_24-0.7 is a DC DC Converters manufactured by GAPTEC Electronic. DC-DC POL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C (With Derating), package / case 3-SIP Module, current - output (max) 700mA.
In Stock: 39
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 27V |
| Voltage - Input (Max) | 72V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 700mA |
| Power (Watts) | 17 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 96% |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.48" L x 0.35" W x 0.69" H (12.1mm x 9.0mm x 17.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for LCW78_24-0.7 and get a quote within 24 hours.
