DC-DC

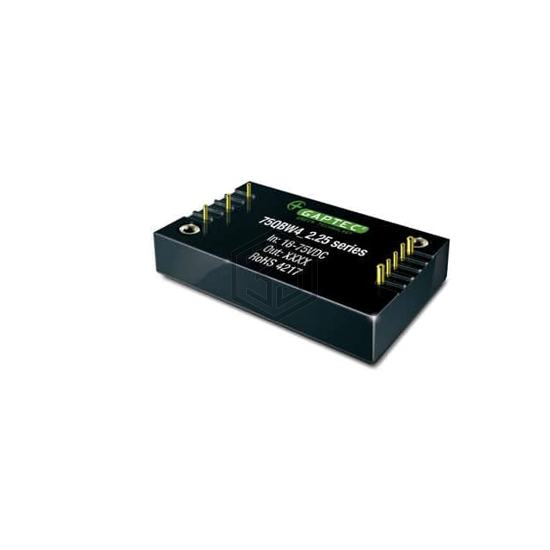

75QBW4_4824S2.25 is a DC DC Converters manufactured by GAPTEC Electronic. DC-DC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case Quarter Brick, current - output (max) 3.13A.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3.13A |
| Power (Watts) | 75 W |
| Voltage - Isolation | 2.25 kV |
| Applications | ITE (Commercial) |
| Features | Remote Sense |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 92% |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for 75QBW4_4824S2.25 and get a quote within 24 hours.
