DC-DC

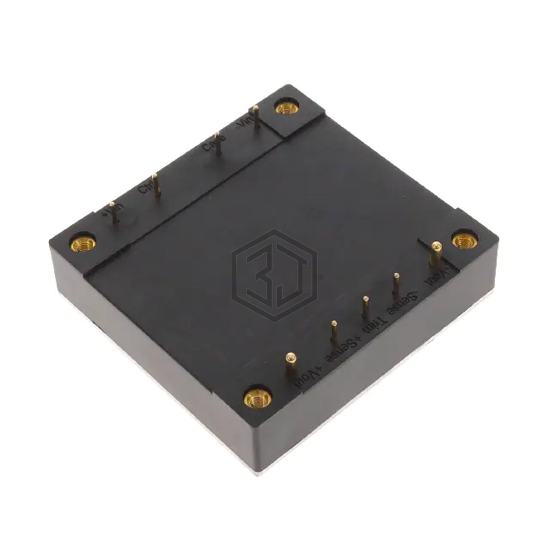

75HBAW4_11012S2.25 is a DC DC Converters manufactured by GAPTEC Electronic. DC-DC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case Half Brick, current - output (max) 6.25A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 40V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6.25A |
| Power (Watts) | 75 W |
| Voltage - Isolation | 2.25 kV |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 91% |
| Mounting Type | Through Hole |
| Package / Case | Half Brick |
| Size / Dimension | 2.40" L x 2.28" W x 0.59" H (61.0mm x 57.9mm x 15.0mm) |
| Supplier Device Package | Half Brick |
| Control Features | Enable, Active High |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for 75HBAW4_11012S2.25 and get a quote within 24 hours.
