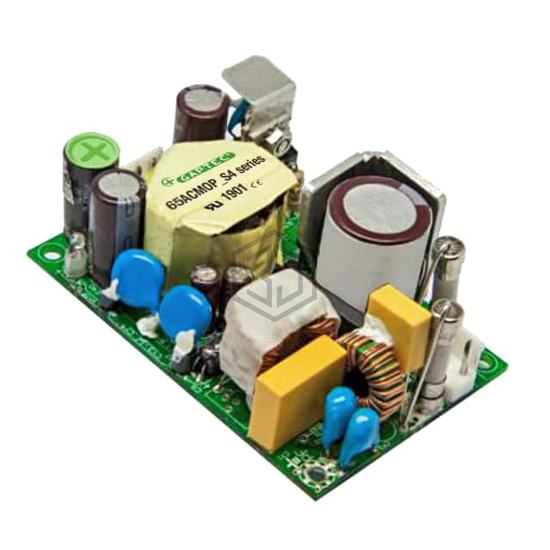

AC/DC CONVERTER 24V 65W
65ACMOP_24S4 is a AC DC Converters manufactured by GAPTEC Electronic. AC/DC CONVERTER 24V 65W. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, package / case 4-DIP Module.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.708A |
| Power (Watts) | 65 W |
| Applications | ITE (Commercial), Medical |
| Features | Adjustable Output, Universal Input |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Efficiency | 87% |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP Module |
| Size / Dimension | 3.00" L x 2.00" W x 1.13" H (76.2mm x 50.8mm x 28.7mm) |
| Approval Agency | CE, UL |
| Standard Number | 60601-1; 60950-1 |
Submit your RFQ for 65ACMOP_24S4 and get a quote within 24 hours.
