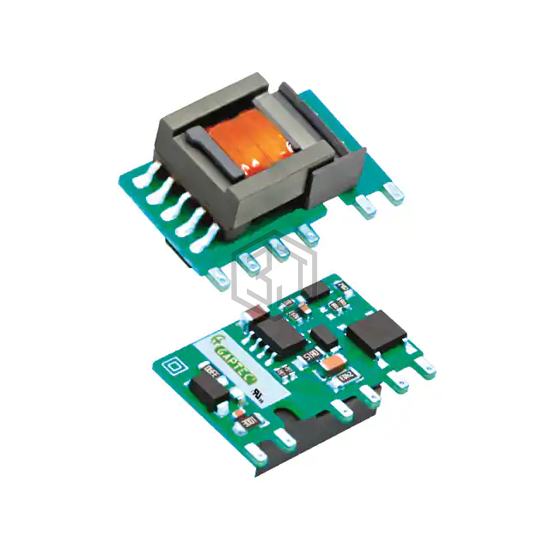

AC/DC CONVERTER 15V 5W
5ACFEW_15S3 is a AC DC Converters manufactured by GAPTEC Electronic. AC/DC CONVERTER 15V 5W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), voltage - input 85 ~ 305 VAC, 70 ~ 430 VDC, package / case 6-SIP Module.
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 305 VAC, 70 ~ 430 VDC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 340mA |
| Power (Watts) | 5 W |
| Applications | Household Appliances, ITE (Commercial) |
| Features | Universal Input |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 79% |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module |
| Size / Dimension | 1.04" L x 0.43" W x 0.58" H (26.4mm x 11.0mm x 14.7mm) |
| Approval Agency | CE, cURus, UL |
| Standard Number | 60335-1; 62368-1 |
Submit your RFQ for 5ACFEW_15S3 and get a quote within 24 hours.
