AC-DC DIN-RAIL

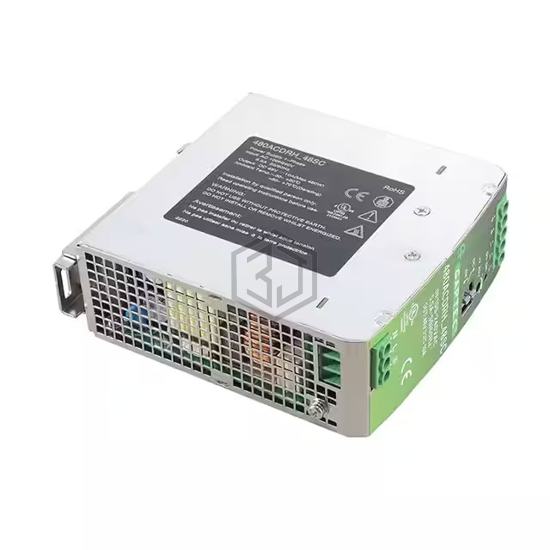

480ACDRH_48SC is a Industrial, DIN Rail Power Supplies manufactured by GAPTEC Electronic. AC-DC DIN-RAIL. Key specifications: operating temperature -30°C ~ 70°C (With Derating), current - output (max) 10A, size / dimension 5.18" L x 1.89" W x 4.92" H (131.5mm x 48.0mm x 125.0mm), number of outputs 1.
In Stock: 48
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 120V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 480W |
| Voltage - Isolation | 3 kV |
| Applications | Industrial, ITE (Commercial), Laboratory |
| Efficiency | 94% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Size / Dimension | 5.18" L x 1.89" W x 4.92" H (131.5mm x 48.0mm x 125.0mm) |
| Approval Agency | cURus |
| Standard Number | 61010-1; 62368-1;UL 508 |
