DC-DC

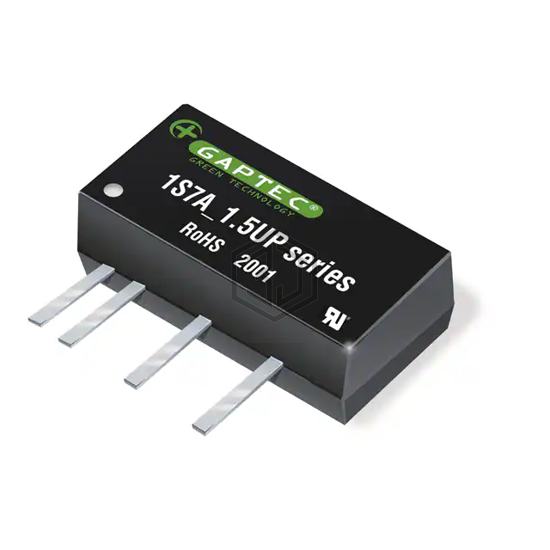

1S7A_0509D1.5UP is a DC DC Converters manufactured by GAPTEC Electronic. DC-DC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case 7-SIP Module, 5 Leads, current - output (max) 56mA, 56mA.
In Stock: 313
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | -9V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 56mA, 56mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 83% |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, cURus |
| Standard Number | 62368-1 |
Submit your RFQ for 1S7A_0509D1.5UP and get a quote within 24 hours.
