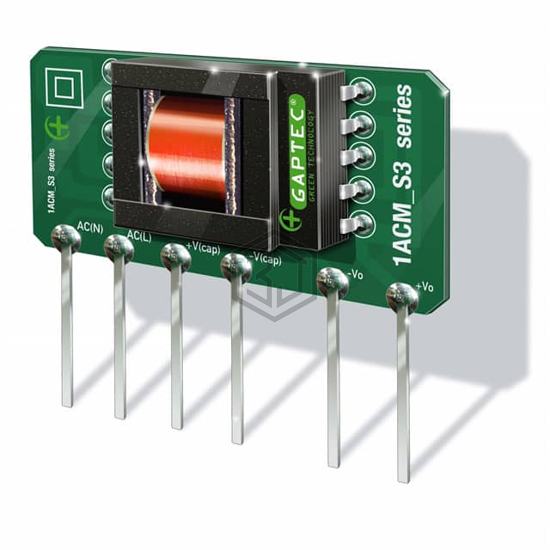

AC/DC CONVERTER 15V 1W
1ACM_15S3 is a AC DC Converters manufactured by GAPTEC Electronic. AC/DC CONVERTER 15V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), voltage - input 85 ~ 264 VAC, 70 ~ 400 VDC, package / case 12-SIP Module, 6 Leads.
In Stock: 27
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 70 ~ 400 VDC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 67mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | Universal Input |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 69% |
| Mounting Type | Through Hole |
| Package / Case | 12-SIP Module, 6 Leads |
| Size / Dimension | 1.38" L x 0.43" W x 0.71" H (35.0mm x 11.0mm x 18.0mm) |
| Approval Agency | CE, cURus, UL |
| Standard Number | 60950-1 |
Submit your RFQ for 1ACM_15S3 and get a quote within 24 hours.
