AC-DC DIN-RAIL

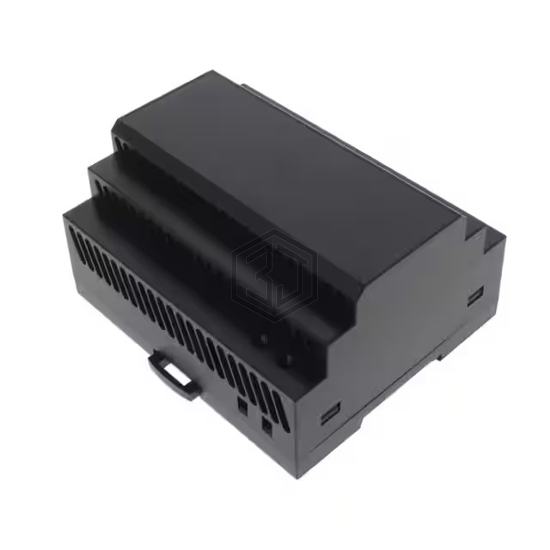

150ACDRS_15S is a Industrial, DIN Rail Power Supplies manufactured by GAPTEC Electronic. AC-DC DIN-RAIL. Key specifications: operating temperature -30°C ~ 70°C (With Derating), current - output (max) 9.5A, size / dimension 2.28" L x 4.13" W x 3.51" H (58.0mm x 105.0mm x 89.1mm), number of outputs 1.
In Stock: 48
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 120V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 9.5A |
| Power (Watts) | 143W |
| Voltage - Isolation | 4 kV |
| Applications | Household Appliances, ITE (Commercial) |
| Efficiency | 89.5% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 2.28" L x 4.13" W x 3.51" H (58.0mm x 105.0mm x 89.1mm) |
| Approval Agency | - |
| Standard Number | 60335-1; 62368-1 |
Submit your RFQ for 150ACDRS_15S and get a quote within 24 hours.
