DC-DC PHOTOVOLTAIK

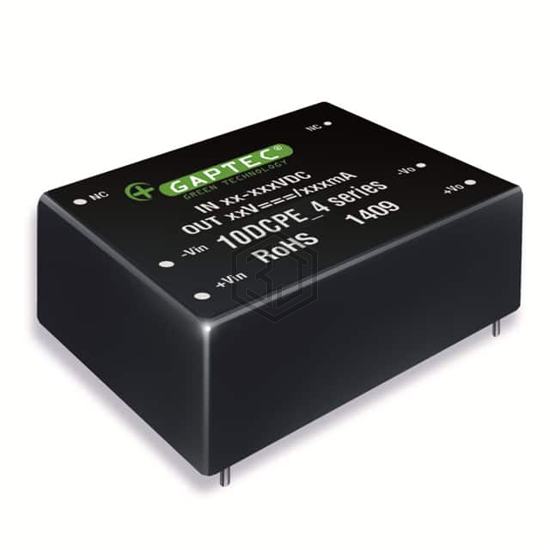

10DCPE_24S4 is a DC DC Converters manufactured by GAPTEC Electronic. DC-DC PHOTOVOLTAIK. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 70°C (With Derating), package / case 5-DIP Module, current - output (max) 420mA.
In Stock: 37
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 100V |
| Voltage - Input (Max) | 1000V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 420mA |
| Power (Watts) | 10 W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Efficiency | 80% |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 2.76" L x 1.89" W x 0.93" H (70.0mm x 48.0mm x 23.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for 10DCPE_24S4 and get a quote within 24 hours.
