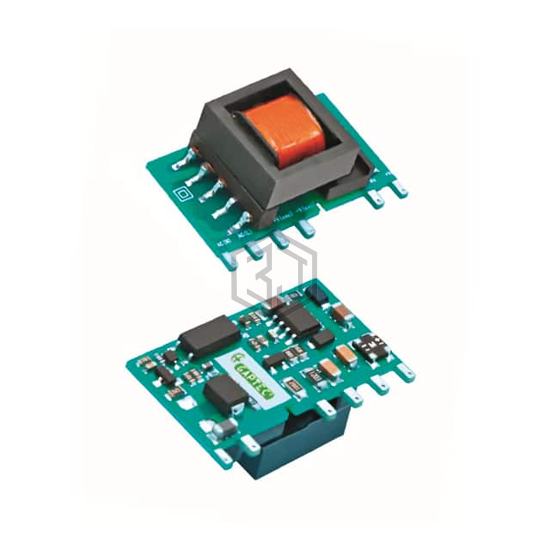

AC/DC CONVERTER 15V 10W
10ACFEW_15S3 is a AC DC Converters manufactured by GAPTEC Electronic. AC/DC CONVERTER 15V 10W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), voltage - input 85 ~ 305 VAC, 100 ~ 430 VDC, package / case 6-SIP Module.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 305 VAC, 100 ~ 430 VDC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 670mA |
| Power (Watts) | 10 W |
| Applications | Household Appliances, ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 82% |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module |
| Size / Dimension | 1.26" L x 0.59" W x 0.68" H (32.0mm x 15.1mm x 17.2mm) |
| Approval Agency | CE, cURus, UL |
| Standard Number | 60335-1; 62368-1 |
Submit your RFQ for 10ACFEW_15S3 and get a quote within 24 hours.
