DC DC CONVERTER

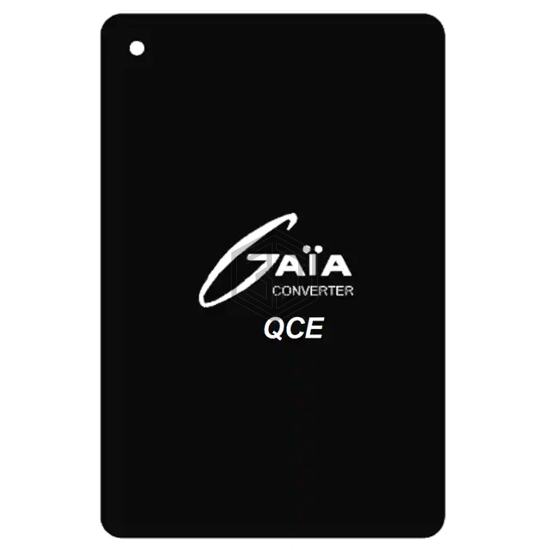

MGDSK35OC is a DC DC Converters manufactured by Gaia Converter. DC DC CONVERTER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 95°C, package / case 17-DIP Module, current - output (max) 7A.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 7A |
| Power (Watts) | 23 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 95°C |
| Efficiency | 84% |
| Mounting Type | Through Hole |
| Package / Case | 17-DIP Module |
| Size / Dimension | 2.88" L x 1.90" W x 0.49" H (73.3mm x 48.3mm x 12.8mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for MGDSK35OC and get a quote within 24 hours.
