DC DC CONVERTER 5V 200W

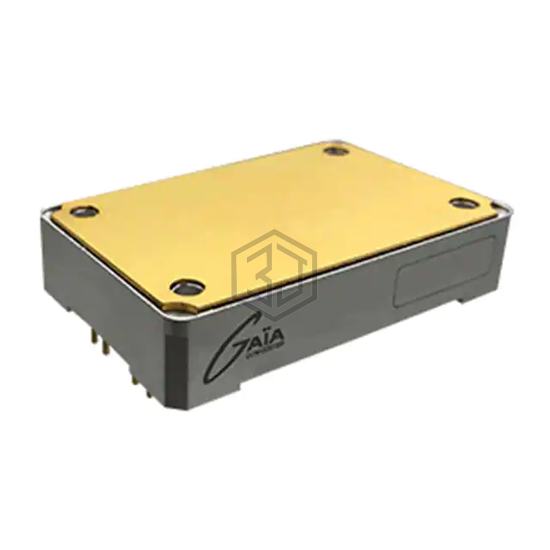

MGDSI-204-H-C is a DC DC Converters manufactured by Gaia Converter. DC DC CONVERTER 5V 200W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, package / case Quarter Brick, current - output (max) 40A.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 40A |
| Power (Watts) | 200 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Baseplate |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 91% |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.40" L x 1.54" W x 0.51" H (61.0mm x 39.0mm x 12.9mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for MGDSI-204-H-C and get a quote within 24 hours.
