DC DC CONVERTER

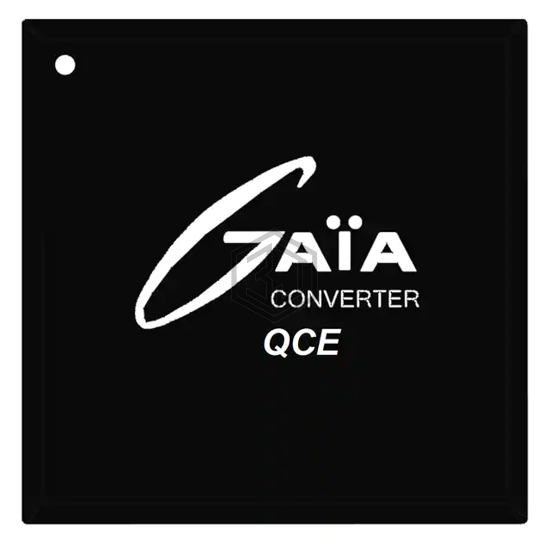

MGDBK25HF is a DC DC Converters manufactured by Gaia Converter. DC DC CONVERTER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 95°C, package / case 8-DIP Module, current - output (max) 830mA, 830mA.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 830mA, 830mA |
| Power (Watts) | 25 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 95°C |
| Efficiency | 87% |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module |
| Size / Dimension | 2.00" L x 2.00" W x 0.50" H (50.8mm x 50.8mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
