INDUSTRIAL SRVO 28.0 X 13.0 X 29

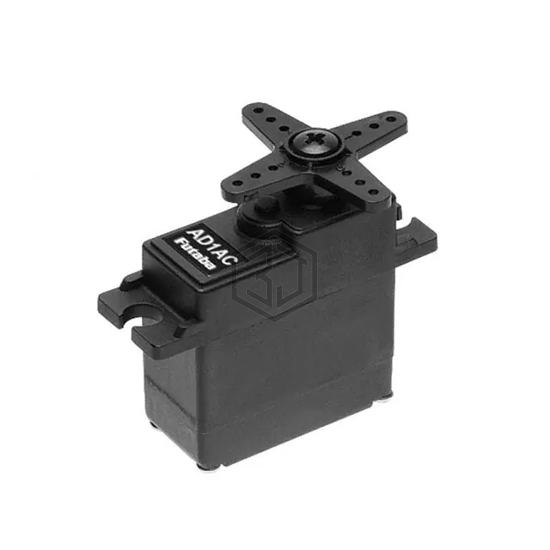

01300215-3 is a Motors - AC, DC manufactured by Futaba Corporation. INDUSTRIAL SRVO 28.0 X 13.0 X 29. Key specifications: operating temperature -10°C ~ 45°C, voltage - rated 4.8VDC, size / dimension Rectangular - 1.575" x 0.512" (40.00mm x 13.00mm), termination style Wire Leads with Connector.
In Stock: 105
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC Motor |
| Function | Servomotor, RC (Hobby) |
| Motor Type | Positional Rotation |
| Voltage - Rated | 4.8VDC |
| RPM | 43.5 RPM |
| Torque - Rated (oz-in / mNm) | - |
| Power - Rated | - |
| Encoder Type | - |
| Size / Dimension | Rectangular - 1.575" x 0.512" (40.00mm x 13.00mm) |
| Diameter - Shaft | - |
| Length - Shaft and Bearing | - |
| Mounting Hole Spacing | - |
| Termination Style | Wire Leads with Connector |
| Features | - |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 51.4 / 360 |
| Operating Temperature | -10°C ~ 45°C |
