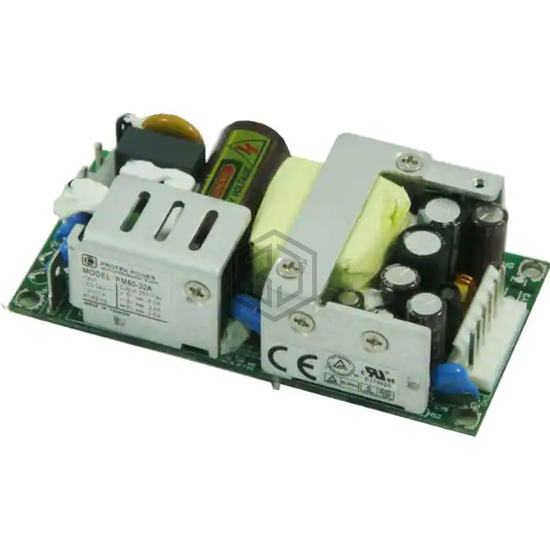

AC/DC CONVERTER 12V 60W
PM60-12A is a AC DC Converters manufactured by FSP Technology Inc.. AC/DC CONVERTER 12V 60W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm).
In Stock: 61
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 60W (60W Forced Air) |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | - |
| Efficiency | 88% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) |
| Approval Agency | CE, cURus, TUV, UL |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for PM60-12A and get a quote within 24 hours.
