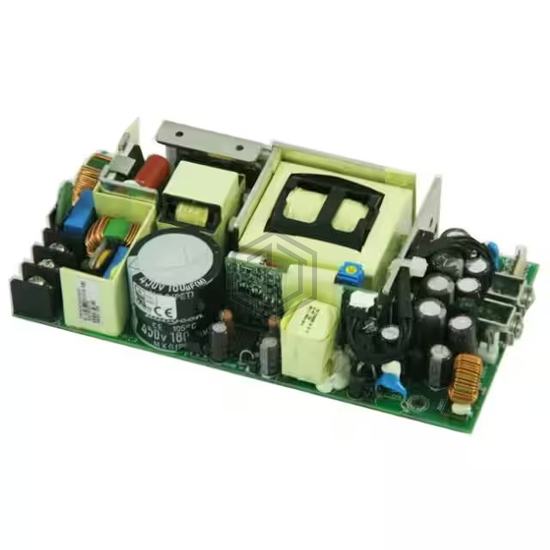

AC/DC CONVERTER 24V 200W
PM301-14A is a AC DC Converters manufactured by FSP Technology Inc.. AC/DC CONVERTER 24V 200W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 3.31" L x 6.82" W x 1.58" H (84.1mm x 173.2mm x 40.1mm).
In Stock: 35
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 12.5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 200W (300W Forced Air) |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | - |
| Efficiency | 92% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.31" L x 6.82" W x 1.58" H (84.1mm x 173.2mm x 40.1mm) |
| Approval Agency | CE, cURus, TUV, UL |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for PM301-14A and get a quote within 24 hours.
