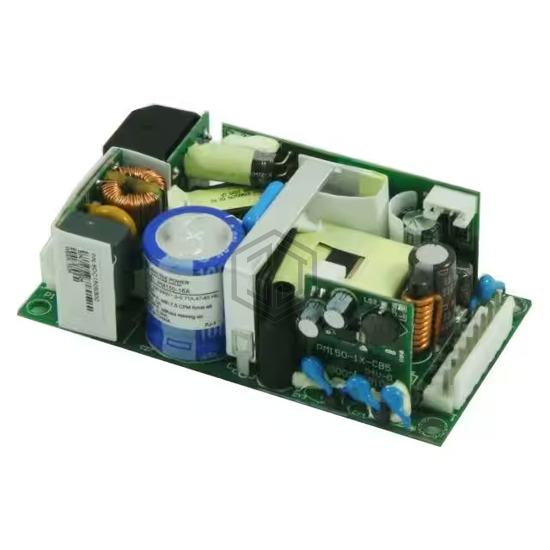

AC/DC CONVERTER 24V 101W
PM150-14A is a AC DC Converters manufactured by FSP Technology Inc.. AC/DC CONVERTER 24V 101W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 80 ~ 264 VAC, size / dimension 4.00" L x 2.00" W x 1.29" H (101.6mm x 50.8mm x 32.8mm).
In Stock: 64
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 4.2 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 101W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | - |
| Efficiency | 92% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.00" W x 1.29" H (101.6mm x 50.8mm x 32.8mm) |
| Approval Agency | CE, cURus, TUV, UL |
| Standard Number | 60601-1; 62368-1 |
