AC/DC CNVT 3.3V 5V 4X12V 748W

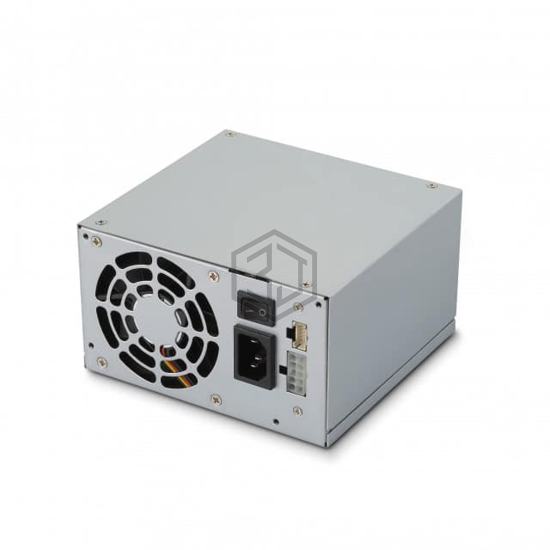

FSP550-70MUA is a AC DC Converters manufactured by FSP Technology Inc.. AC/DC CNVT 3.3V 5V 4X12V 748W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 50°C, voltage - input 90 ~ 264 VAC, size / dimension 5.91" L x 5.51" W x 3.39" H (150.0mm x 140.0mm x 86.0mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | ATX |
| Number of Outputs | 6 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | 12V |
| Voltage - Output 5 | 12V |
| Voltage - Output 6 | 12V |
| Current - Output 1 | 20 A |
| Current - Output 2 | 20 A |
| Current - Output 3 | 16 A |
| Current - Output 4 | 16 A |
| Current - Output 5 | 16 A |
| Current - Output 6 | 500 mA |
| Power (Watts) | 748W |
| Applications | Medical |
| Voltage - Isolation | - |
| Efficiency | 80% |
| Operating Temperature | 0°C ~ 50°C |
| Features | PFC, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.91" L x 5.51" W x 3.39" H (150.0mm x 140.0mm x 86.0mm) |
| Approval Agency | CB, CE, FCC, VCCI |
| Standard Number | 60601-1 |
Submit your RFQ for FSP550-70MUA and get a quote within 24 hours.
