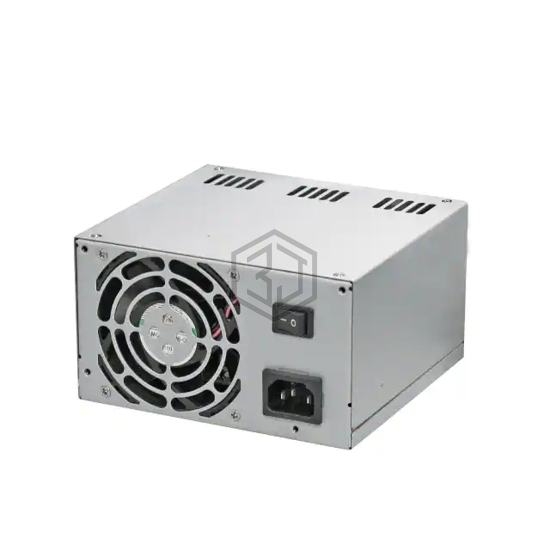

ACDC CNVT 3.3V 5V 3X12V -5V 346W
FSP400-70MPD is a AC DC Converters manufactured by FSP Technology Inc.. ACDC CNVT 3.3V 5V 3X12V -5V 346W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 50°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 5.91" L x 5.51" W x 3.39" H (150.0mm x 140.0mm x 86.0mm).
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | ATX |
| Number of Outputs | 7 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | 12V |
| Voltage - Output 5 | -5V |
| Voltage - Output 6 | -12V |
| Current - Output 1 | 21 A |
| Current - Output 2 | 18 A |
| Current - Output 3 | 18 A |
| Current - Output 4 | 18 A |
| Current - Output 5 | 200 mA |
| Current - Output 6 | 500 mA |
| Power (Watts) | 346W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | - |
| Efficiency | 90% |
| Operating Temperature | 0°C ~ 50°C (With Derating) |
| Features | PFC, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.91" L x 5.51" W x 3.39" H (150.0mm x 140.0mm x 86.0mm) |
| Approval Agency | CE, cURus, FCC, TUV, VCCI |
| Standard Number | 60601-1; 60950-1 |
