AC/DC CNVT 3.3V 5V 2X12V 2X-12V

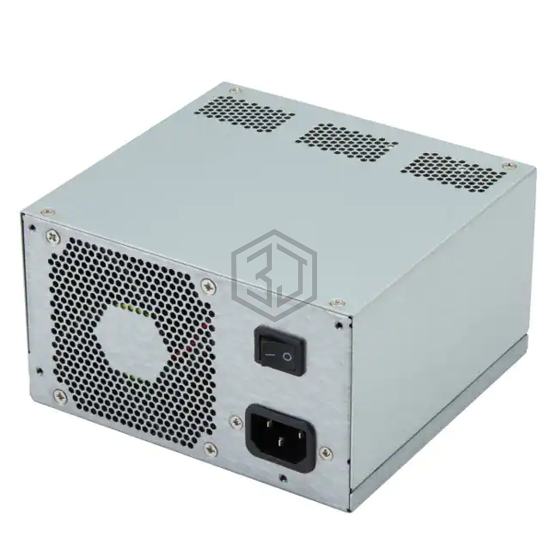

FSP400-70AGGBM(M) is a AC DC Converters manufactured by FSP Technology Inc.. AC/DC CNVT 3.3V 5V 2X12V 2X-12V. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 50°C, voltage - input 90 ~ 264 VAC, size / dimension 5.51" L x 5.91" W x 3.39" H (140.0mm x 150.1mm x 86.1mm).
In Stock: 104
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | ATX |
| Number of Outputs | 5 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | 12V |
| Voltage - Output 5 | -12V |
| Voltage - Output 6 | -12V |
| Current - Output 1 | 21 A |
| Current - Output 2 | 16 A |
| Current - Output 3 | 17 A |
| Current - Output 4 | 17 A |
| Current - Output 5 | 500 mA |
| Current - Output 6 | - |
| Power (Watts) | 563W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | - |
| Efficiency | 80% |
| Operating Temperature | 0°C ~ 50°C |
| Features | Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.51" L x 5.91" W x 3.39" H (140.0mm x 150.1mm x 86.1mm) |
| Approval Agency | CB, CCC, CE, cULus, FCC, GS, TUV |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for FSP400-70AGGBM(M) and get a quote within 24 hours.
