AC/DC CNVT 3.3V 5V 2X12V 2X-5V

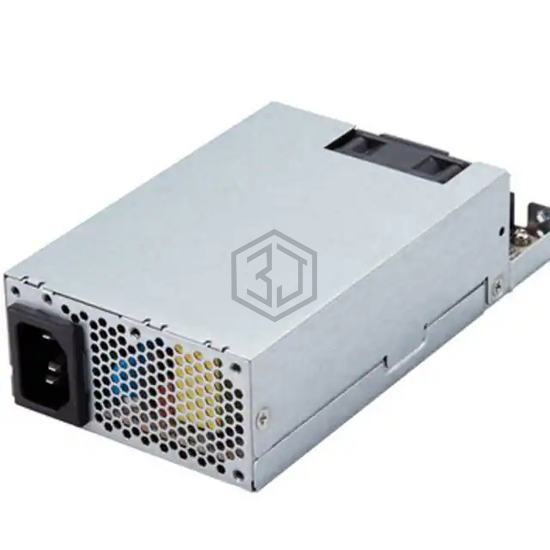

FSP350-57FCB is a AC DC Converters manufactured by FSP Technology Inc.. AC/DC CNVT 3.3V 5V 2X12V 2X-5V. Key specifications: mounting type Chassis Mount, operating temperature 50°C, voltage - input 90 ~ 264 VAC, size / dimension 7.48" L x 3.94" W x 1.59" H (190.0mm x 100.0mm x 40.5mm).
In Stock: 57
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | ATX |
| Number of Outputs | 6 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | 12V |
| Voltage - Output 5 | -5V |
| Voltage - Output 6 | -5V |
| Current - Output 1 | 16 A |
| Current - Output 2 | 18 A |
| Current - Output 3 | 16 A |
| Current - Output 4 | 16 A |
| Current - Output 5 | 500 mA |
| Current - Output 6 | 200 mA |
| Power (Watts) | 532W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | - |
| Efficiency | 80% |
| Operating Temperature | 50°C |
| Features | PFC, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.48" L x 3.94" W x 1.59" H (190.0mm x 100.0mm x 40.5mm) |
| Approval Agency | CB, CE, cURus, FCC, VCCI |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for FSP350-57FCB and get a quote within 24 hours.
