LED DRIVER CC AC/DC 144-229V 140

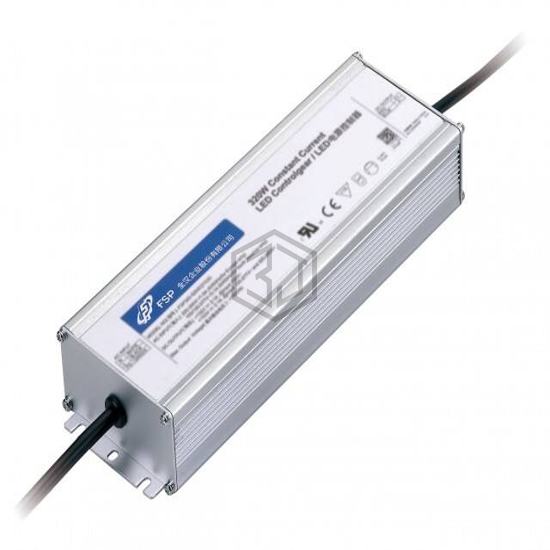

FSP320-SZAE(140)MG is a LED Drivers manufactured by FSP Technology Inc.. LED DRIVER CC AC/DC 144-229V 140. Key specifications: operating temperature -40°C ~ 70°C (With Derating), voltage - output 114 ~ 229V, current - output (max) 1.4A, size / dimension 9.41" L x 3.31" W x 1.67" H (239.0mm x 84.0mm x 42.5mm).
In Stock: 5,082
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 114 ~ 229V |
| Current - Output (Max) | 1.4A |
| Power (Watts) | 321 W |
| Voltage - Isolation | 500 V |
| Dimming | Analog, PWM |
| Features | Remote On/Off, OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Efficiency | 94% |
| Termination Style | Wire Leads |
| Size / Dimension | 9.41" L x 3.31" W x 1.67" H (239.0mm x 84.0mm x 42.5mm) |
| Approval Agency | CE, cURus, UL |
| Standard Number | - |
