AC/DC CNVT 3.3V 5V +/-12V 2X5V

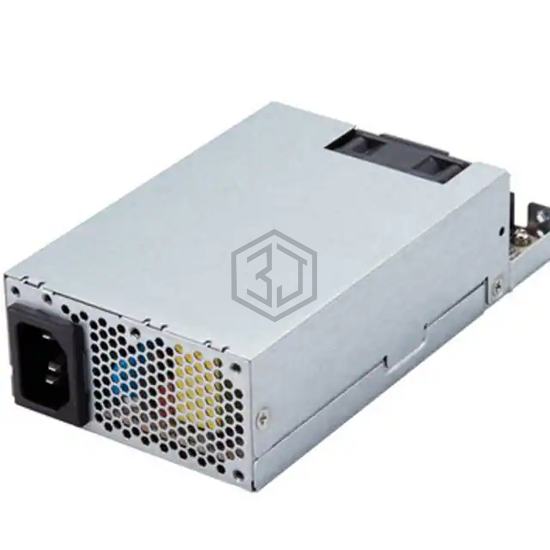

FSP250-50FGBBI(M) is a AC DC Converters manufactured by FSP Technology Inc.. AC/DC CNVT 3.3V 5V +/-12V 2X5V. Key specifications: mounting type Chassis Mount, operating temperature 50°C, voltage - input 90 ~ 264 VAC, size / dimension 5.91" L x 3.21" W x 1.59" H (150.0mm x 81.5mm x 40.5mm).
In Stock: 42
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 5 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | -12V |
| Voltage - Output 5 | 5V |
| Voltage - Output 6 | - |
| Current - Output 1 | 8 A |
| Current - Output 2 | 12 A |
| Current - Output 3 | 18 A |
| Current - Output 4 | 300 mA |
| Current - Output 5 | 2.5 A |
| Current - Output 6 | - |
| Power (Watts) | 306W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | - |
| Efficiency | 80% |
| Operating Temperature | 50°C |
| Features | Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.91" L x 3.21" W x 1.59" H (150.0mm x 81.5mm x 40.5mm) |
| Approval Agency | CB, CE, CCC, cULus, FCC, GS, TUV |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for FSP250-50FGBBI(M) and get a quote within 24 hours.
